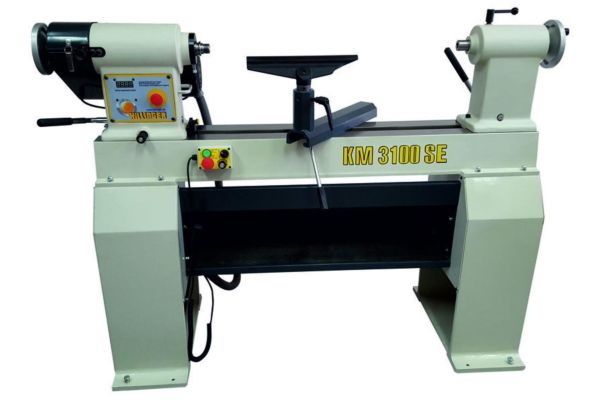

Killinger Woodturning Lathe KM3100 SE

Product Code
KM3100SE
Rating:
In stock
1 left
£5,534.80 £4,612.33
Features-

* Heavy sturdy Woodturning Lathe from cast iron, weight 440 kg

* Variable modular design, expandable and with upgrade possibility

* Standard centre distance 850 mm

* optional centre distances: 1.540 mm with 3rd foot, or 2.300 mm with 4 casting legs

* Bed extension jerkfree pined together, no displaced transition

* Safety lock for tail-/headstock: avoids moving by turning unbalanced, heavy parts

* Safety lock of tailstock quill, by large clamping cups from bronze

* Masche completely mounted, ready to use, dismountable of all parts possible

Technical Data-

Centre distance standard 850 mm

Turning diameter 560 mm resp. 820 mm with outrigger

Headstock infinitely swivelling, sliding along lathe bed

6 Fix Positions: 0-270 °

Exactly "Zero-Point" adjustment at headstock for tip-to-tip

Hollow spindle M 33/MK2/Bo=10 mm, ground, triple bearing with maintenance-free angular bearings

ASS security system at spindle

Tailstock quill MK2 hardened and ground/stroke 135 mm, with trapezoidale thread for fast stroke of quill

Quill with laser scale easy to read, self-ejecting of live centre

3-ph Motor PS/2,2 kW/electric mains 230 V/1 ph/CEE-Stecker 16A

Spindle speed infinitely electronically variable (3 steps) von 40 - 3.025 rpm/min

Digital display, variable positioning of operating box with left/right run, On-Off-Button

integrated divison system with 36 divisions

sturdy tool rest bottom part with tool rest made from low wear steel-cast tool rest bottom part with centrally leverclamping: guarantees consistent clamping power at the whole length, removable keyless

Standard Accessory-

Emergency-Off-Button at headstock, movable operation box with magnet Zero-Point-Locksystem at headstock for exactly alignment tip-to-tip ASS safety ring to lock chucks Tool rest bottom part cast iron Tool rest sturdy design, steel-cast, 350 mm/stem D=30 mm with adjustment ring Live centre MT2/60° D=30 mm Live centre MT2/ D=20 mm with press-ring, sturdy design Vierzack MK2/D=25 mm Vierzack M33/D=45 mm 2 sockets 230 V/1 ph (for connection of light, dust extraction etc) Tool Box with rubber mat Screws+steel plates+rubber mats for each foot for height adjustment of lathe

Weight/Dimensions

Weight at 850 mm centre distance 440 kg Dimension of Standard Lathe (LxWxH) 1.850x600x1.250 mm CE-conform, subject to change without notice
